Core Hardness Tester VCH

Core Hardness Tester VCH

The Core Hardness Tester (VCH) from Versatile Equipments. Core hardness testing is crucial for determining the structural integrity of moulds and cores, ensuring they can withstand the rigors of the casting process. Assessing core hardness, helps you minimize defects, reduce scrap rates.

  • 1.1 General information

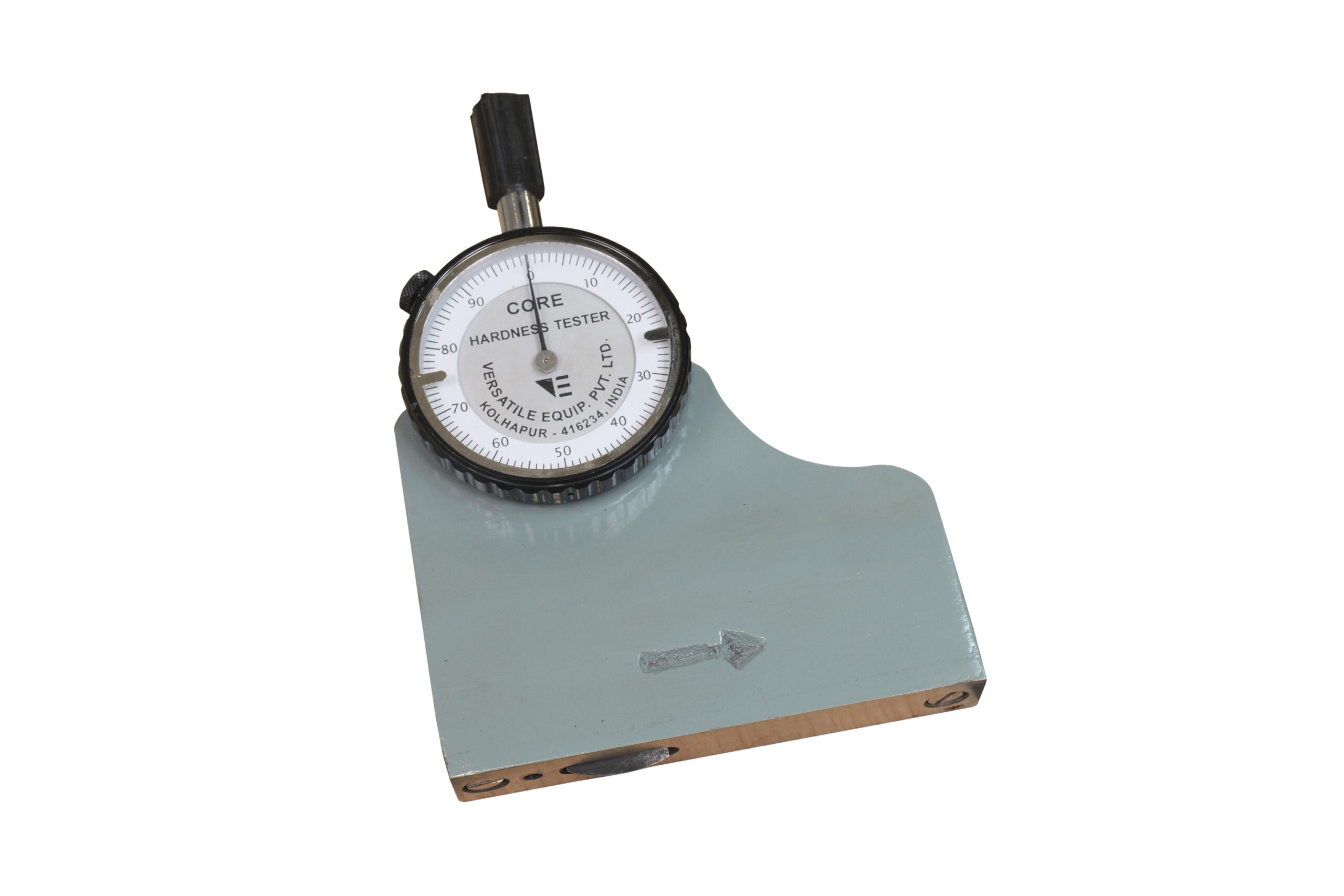

    This handheld equipment consists of a Dial indicator with Special tip designed for measurement of hardness of sand cores. It is a scratch type hardness tester.

  • 1.2 General Usage

    Tip of the equipment is pressed against flat surface of core & slowly pull the equipment longitudinally and firmly on the surface. To observe reading of core hardness on dial indicator directly in numbers.

  • 1.3 Product Data

    Product Name:

    Core Hardness Tester

    Product Code:

    VCH

    Order Reference Code:

    V0000038

    Electrical Supply Required:

    Not Required

    Electrical Plug:

    Not Applicable

    Typical Maximum Current:

    Not Applicable

    Compressed air Supply:

    Not Required

    Communication:

    Not Applicable

    Dimensions:

    200 X 180 X 35 mm (WXBXH)

    Packing Dimensions:

    230 mmx 230 mm x 130 mm (WXBXH) Typical

    Net Weight:

    Approximately 0.9 kg

    Gross Weight:

    Approximately 2 kg

    Colour:

    Factory Default

    Measuring Range:

    0-100 CHN (Core Hardness Number)

    Traceable to:

    NABL Standards

    Least Count:

    1 CHN

    Specimen Requirements:

    Not Required

    Operating Temperature:

    0-50 degree Celsius

    Testing Standards:

    BIS: Standard

    AFS: Not Applicable

    Calibration Frequency:

    19100 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Hand-held equipment with tip protector.
    • Head Pipe Cap.
    • A box to house the equipment when not in use.
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    NA

  • 4.1 Recommended Calibration kits

    VKMC: Calibration Kit for Mould & Core Hardness Tester

  • 4.2 Recommended attachments

    NA

  • 4.3 Alternative equipment

    Digital Core Hardness tester VCHDā€‹ā€‹ā€‹ā€‹ā€‹ā€‹ā€‹

  • 5.1 Consumables

    NA
