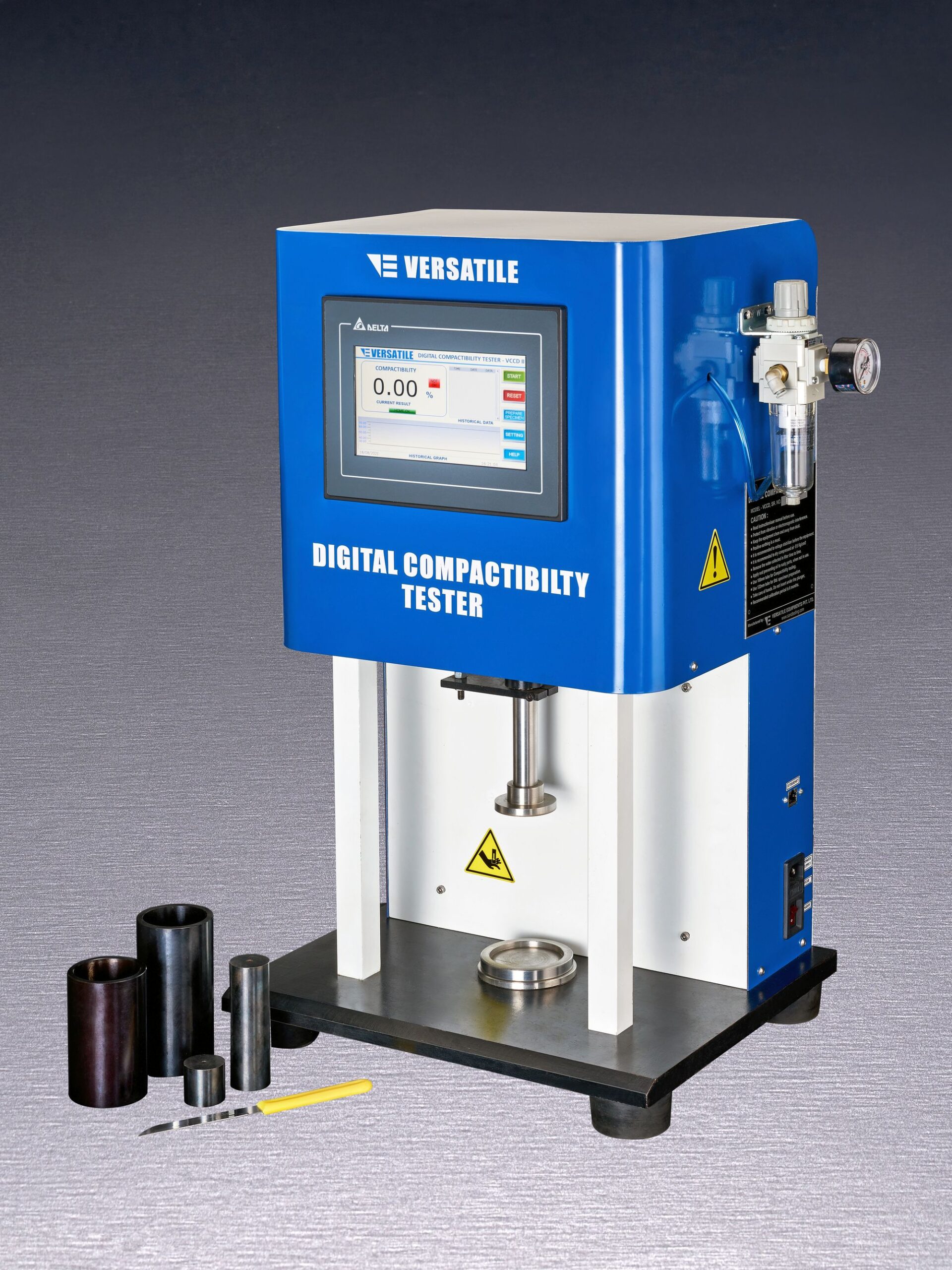

Digital Compactibility Tester VCCD I

Digital Compactibility Tester VCCD I


  • 1.1 General information

    Digital Compactibility Tester is equipped with a squeezing mechanism and sensing mechanism which are controlled by PLC and observed on screen touch HMI.

  • 1.2 General Usage

    To check compactibility & to prepare standard specimen under identical condition for checking important physical properties of moulding sand.

  • 1.3 Product Data

    Product Name:

    Digital Compactibility Tester

    Product Code:

    VCCD I

    Order Reference Code:


    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    1.5 A at 230V

    Compressed air Supply:

    5 Kg/cm2 Compressed Dry Air


    • Ethernet (Optional)
    • CloudSync using V-Sync


    465x320x670 mm (WXBXH)

    Packing Dimensions:

    565x420x780 mm (WXBXH) Typical

    Net Weight:

    Approximately 53 kg

    Gross Weight:

    Approximately 63 kg


    Factory Default

    Measuring Range:

    0 to 52 %

    Traceable to:

    NABL Standards

    Least Count:

    0.1 %

    Specimen Requirements:

    Not Required

    Operating Temperature:


    Testing Standards:

    BIS: Standard

    AFS: Optional

    Calibration Frequency:

    22500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Digital Compatibility Tester.
    • Specimen tubes, Pedestal cup & Stripper.
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    Sand Splitter : To get representative sample

    Tube Filler Accessory VTF.

    Weighing Balance (LC 10mg)

  • 4.1 Recommended Calibration kits

    Calibration Piece High VCCD

    Calibration Piece Low VCCD

  • 4.2 Recommended attachments


  • 4.3 Alternative equipment

    Sand Squeezer VCC.

    Digital Compactibility Tester VCCD.
