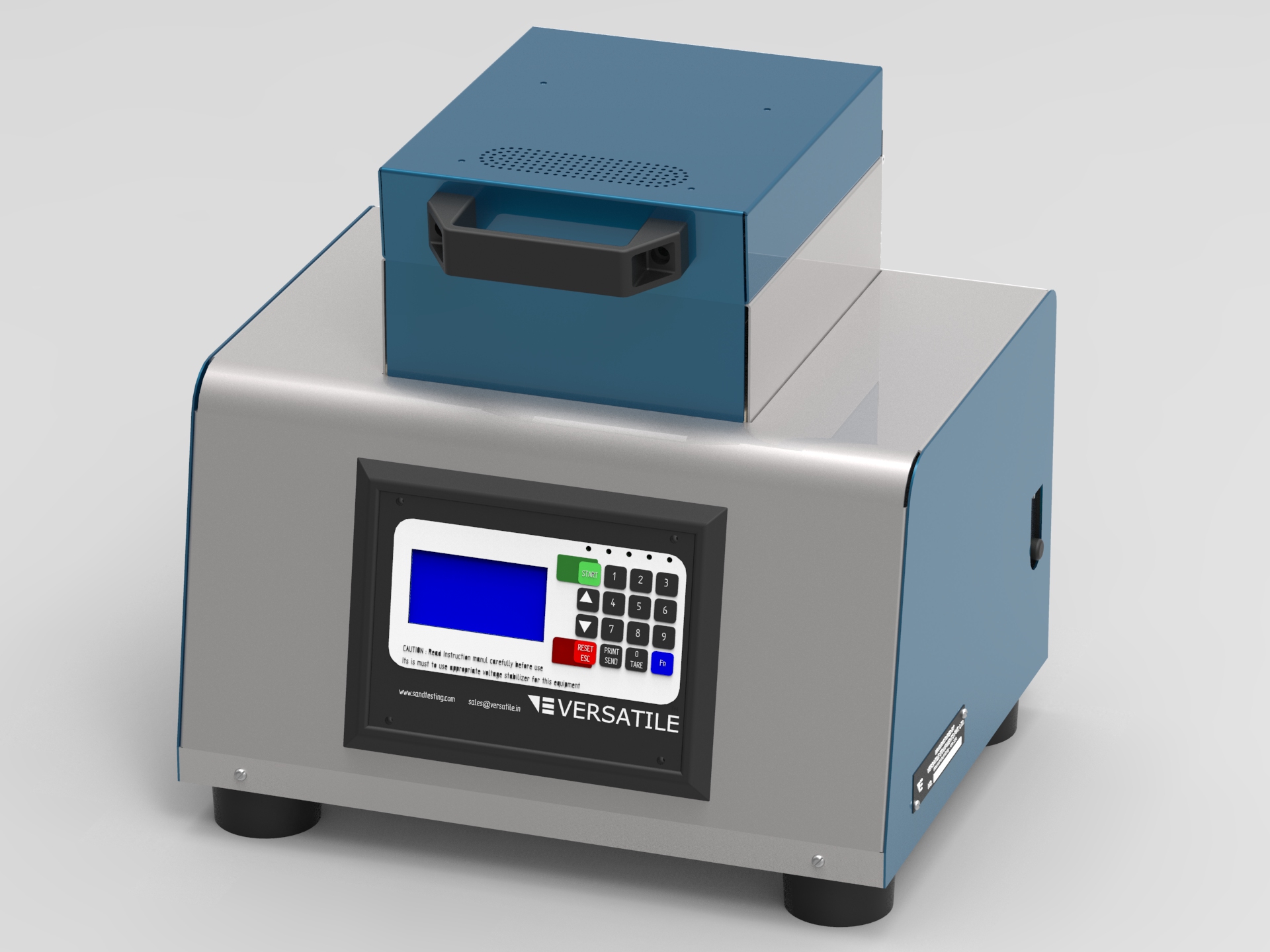

Digital Moisture Meter VMD

Digital Moisture Meter VMD


  • 1.1 General information

    Digital Moisture Meter is equipped with a heating mechanism and sensing mechanism which are controlled by Microcontroller or PLC and observed on LCD display.

  • 1.2 General Usage

    Digital Moisture Meter is used to check the moisture percentage in foundry sand.

  • 1.3 Product Data

    Product Name:

    Digital Moisture Meter

    Product Code:


    Order Reference Code:


    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    10.9 A at 230V AC

    Compressed air Supply:

    Not Required


    • RS485 MODBUS RTU
    • RS232 Serial
    • Ethernet (Optional)
    • CloudSync using V-Sync


    395 X 340 X 370 mm (WXBXH)

    Packing Dimensions:

    500 mmx 450mm x 530 mm (WXBXH) Typical

    Net Weight:

    Approximately 29 kg

    Gross Weight:

    Approximately 34 kg


    Factory Default

    Measuring Range:

    0-10 %

    Traceable to:

    NABL Standards

    Least Count:

    0.1 %

    Specimen Requirements:

    Not Required

    Operating Temperature:

    0-50 degrees Celsius

    Testing Standards:

    BIS: Standard

    AFS: Not Applicable

    Calibration Frequency:

    19500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Digital Moisture Meter.
    • Pan.
    • Tongs.
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment



  • 4.1 Recommended Calibration kits

    Model VKHC

    Dead Weights.

  • 4.2 Recommended attachments


  • 4.3 Alternative equipment

    • Digital Moisture Accessory VRMD
    • Rapid Moisture Meter VM
    • VCAT Multi Tester
  • 5.1 Consumables
