Description
1.1 General information

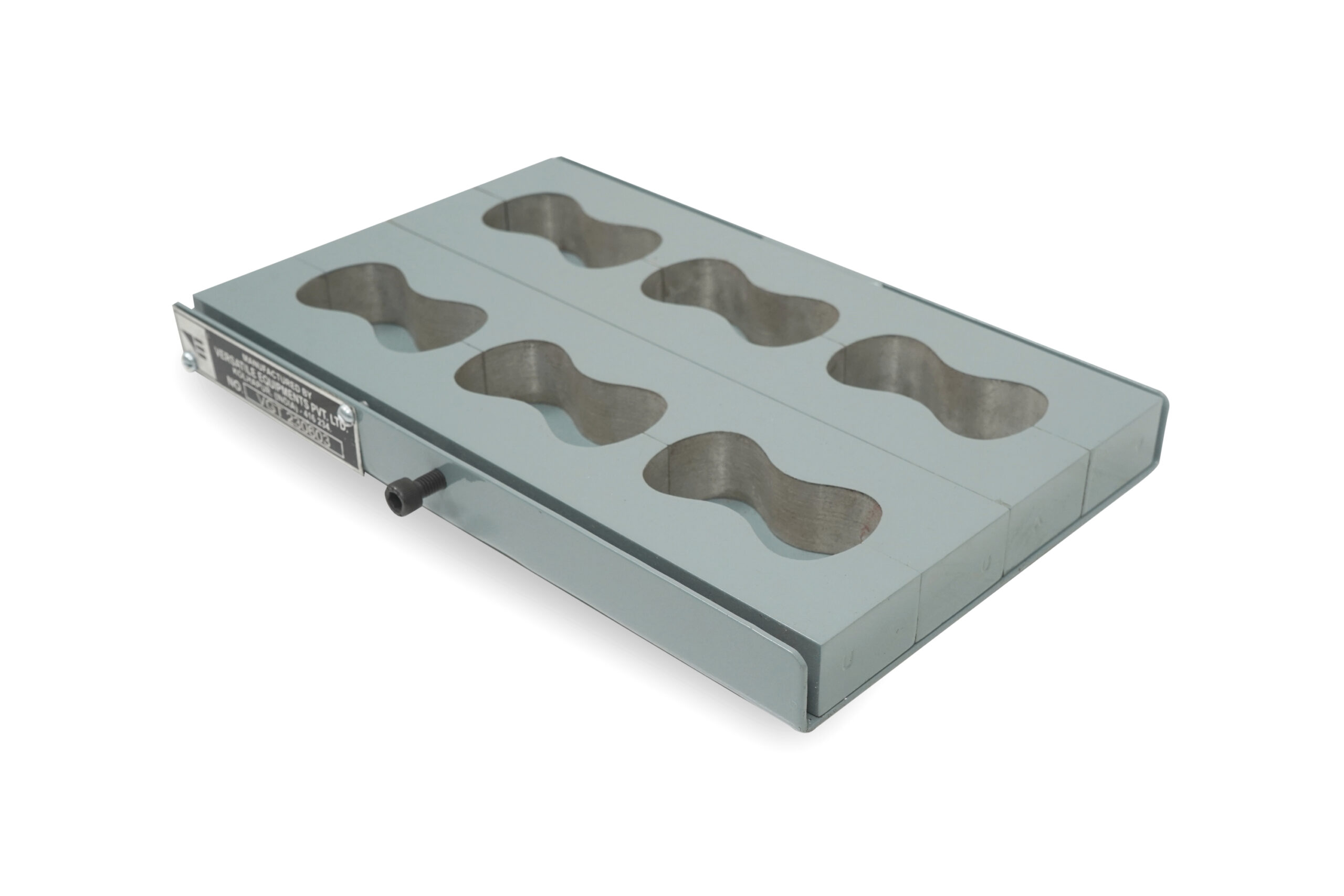

The equipment consists of split core box, base plate and allen screw for clamping arrangement.
1.2 General Usage
This equipment used for prepare the tensile type multiple specimen of No-bake sand.
1.3 Product Data
|
Product Name: |
Gang Tensile Core Box |
|
Product Code: |
VGT |
|
Order Reference Code: |
V0000020 |
|
Electrical Supply Required: |
Not Required |
|
Electrical Plug: |
Not Applicable |
|
Typical Maximum Current: |
Not applicable |
|
Compressed air Supply: |
Not Required
|
|
Communication: |
Not Applicable |
|
Dimensions: |
260x185x25mm (WXBXH) |
|
Packing Dimensions: |
350x250x150mm (WXBXH) Typical |
|
Net Weight: |
Approximately 3 kg |
|
Gross Weight: |
Approximately 4 kg |
|
Colour: |
Factory Default |
|
Measuring Range: |
Not Applicable |
|
Traceable to: |
Manufacturers Standards |
|
Least Count: |
Not Applicable |
|
Specimen Requirements: |
Not Required
|
|
Operating Temperature: |
0-50 degree Celsius |
|
Testing Standards: |
BIS: Standard AFS: Optional GOST: Optional |
|
Calibration Frequency: |
4500 nos. of Testing Cycles or Once in Year |
2.1 Scope of supply
- Gang tensile core box.
- Base plate with allen screws.
- Instruction manual.
3.1 Recommended pre-requisite equipment
NA
4.1 Recommended Calibration kits
NA
4.2 Recommended attachments
NA
4.3 Alternative equipment
Tensile Core Box VCB
5.1 Consumables
NA
