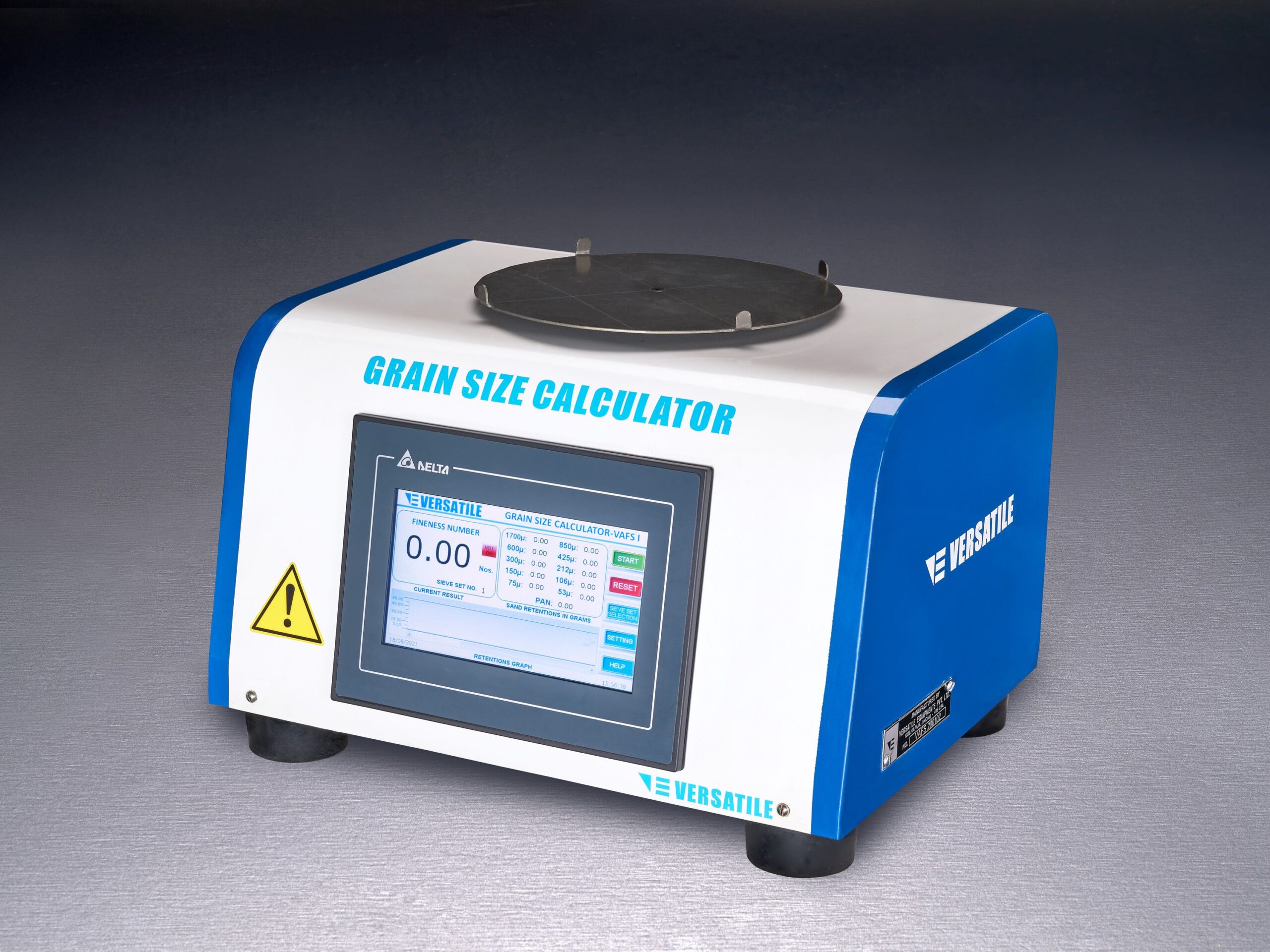

Grain Size Calculator VAFS I

Grain Size Calculator VAFS I



  • 1.1 General information

    Grain size calculator is equipped with a sensing mechanism which are controlled by PLC and observed on screen touch HMI display.

  • 1.2 General Usage

    To calculate the grain size of raw shell sand after sieving. This is specially developed for this purpose & not for any other commercial use.

  • 1.3 Product Data

    Product Name:

    Grain Size Calculator

    Product Code:

    VAFS I

    Order Reference Code:

    V0000110

    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    1.2 A at 230V

    Compressed air Supply:

    Not Required

    Communication:

    • Ethernet (Optional)
    • CloudSync using V-Sync

    Dimensions:

    400x315x275 mm (WXBXH)

    Packing Dimensions:

    500x415x425 mm (WXBXH) Typical

    Net Weight:

    Approximately 29 kg

    Gross Weight:

    Approximately 38 kg

    Colour:

    Factory Default

    Measuring Range:

    Weight: 400 Grams

    Least Count:

    Weight: 0.01 Grams

    AFS: 0.01 Number

    Traceable to:

    NABL Standards

    Specimen Requirements:

    Not Required

    Operating Temperature:

    0-500C

    Testing Standards:

    BIS: Standard

    AFS: Not Applicable

    Calibration Frequency:

    1950 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Grain Size Calculator.
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    There are three types of equipmentā€™s to choose from:

    Sieve Shaker VGH (Educational Purposes)

    Sieve Shaker VGH II

    Sieve Shaker VGH III

  • 4.1 Recommended Calibration kits

    Dead Weights

  • 4.2 Recommended attachments

    NA

  • 4.3 Alternative equipment

    Grain Size Calculator VAFS
