Mould Strength Tester VMS

Mould Strength Tester VMS


  • 1.1 General information

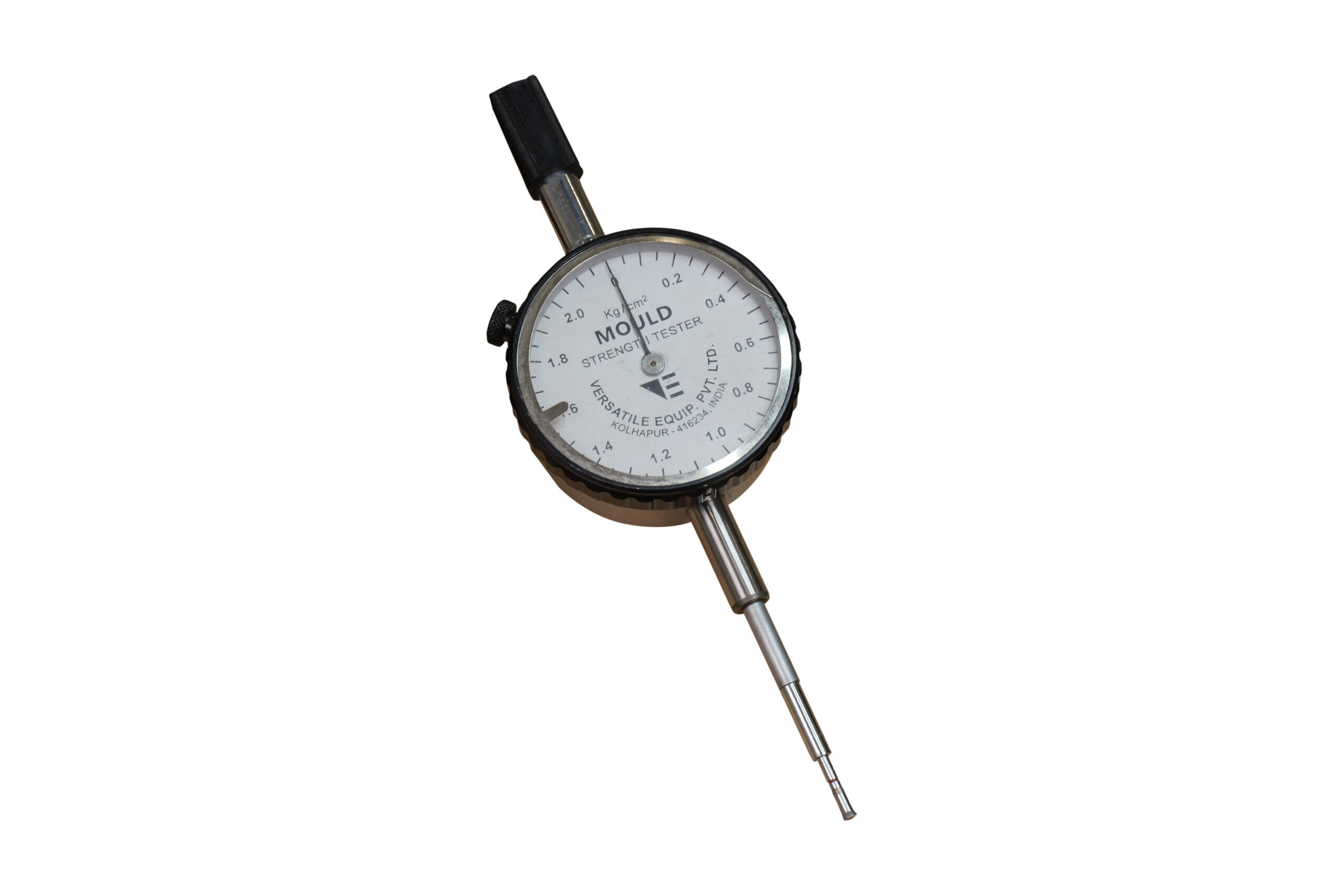

    This handheld equipment consists of a Dial indicator with Special tip designed for measurement of mould strength directly on mould.

  • 1.2 General Usage

    Tip of the equipment is pressed against mould surface to observed mould strength in kg/cm2.

  • 1.3 Product Data

    Product Name:

    Mould Strength Tester

    Product Code:


    Order Reference Code:


    Electrical Supply Required:

    Not Required

    Electrical Plug:

    Not Applicable

    Typical Maximum Current:

    Not Applicable

    Compressed air Supply:

    Not Required


    Not Applicable


    190x120x40mm (WXBXH)

    Packing Dimensions:

    230x230x130 mm (WXBXH) Typical

    Net Weight:

    Approximately 0.750 kg

    Gross Weight:

    Approximately 1.1 kg


    Factory Default

    Measuring Range:

    0-2 Kg/cm2

    Traceable to:

    NABL Standards

    Least Count:

    0.05 Kg/cm2

    Specimen Requirements:

    Not Required

    Operating Temperature:

    0-50 degree Celsius

    Testing Standards:

    BIS: Standard

    AFS: Not Applicable

    Calibration Frequency:

    22500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Hand-held equipment.
    • Head Pipe Cap.
    • A box to house the equipment when not in use.
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment


  • 4.1 Recommended Calibration kits

    VKMC: Calibration Kit for Mould & Core Hardness Tester

  • 4.2 Recommended attachments


  • 4.3 Alternative equipment

    VCAT Mark II​​​​​​​

  • 5.1 Consumables
