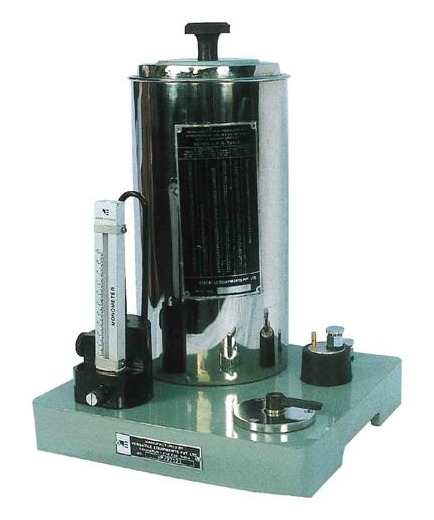

Permeability Meter VP

Permeability Meter VP



  • 1.1 General information

    This equipment to measure Permeability of Foundry Sands. By default it can measure absolute permeability of an AFS (Dia. 2ā€X2ā€) or Metric (Dia. 50mmX50mm) Specimen.

    With Help of attachment it can also measure

    • Relative Permeability of Moulds (Refer 4.2.1)
    • Absolute Permeability of Cores (Refer 4.2.2)
    • Absolute Permeability of Un-bonded sand (Refer 4.2.3).
  • 1.2 General Usage

    Specimen held in a Tube or accessory is placed on the measuring Rubber Boss. Conduct the test cycle & read the permeability reading on AFS chart.

  • 1.3 Product Data

    Product Name:

    Permeability Meter

    Product Code:

    VP

    Order Reference Code:

    V0000025

    Electrical Supply Required:

    Not Required

    Electrical Plug:

    Not Applicable

    Typical Maximum Current:

    Not Applicable

    Compressed air Supply:

    Not Required

    Communication:

    Not Applicable

    Dimensions:

    290 X 275 X 420 mm (WXBXH)

    Packing Dimensions:

    400 mmx 400mm x 685 mm (WXBXH) Typical

    Net Weight:

    Approximately 15 kg

    Gross Weight:

    Approximately 20 kg

    Colour:

    Factory Default

    Measuring Range:

    0-100 mmWC and Related permeability readings displayed on AFS chart.

    Traceable to:

    Manufacturers Standards

    Least Count:

    1 mmWC

    Specimen Requirements:

    Compression type specimen

    Operating Temperature:

    0-50 degree Celsius

    Testing Standards:

    BIS: Standard

    AFS: Optional

    Calibration Frequency:

    22500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Permeability Meter.
    • Large Orifice.
    • Syphon Pump.
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    Sand Splitter : To get representative sample

    Specimen preparation equipment to make a standard AFS or Metric Compression specimen.

  • 4.1 Recommended Calibration kits

    There are four types of calibration kits to choose from:

    VKPA: With Std. Specimen type for Small Orifice

    VKPB: With Std. Specimen type for Large Orifice

    VKPC: With Rubber Boss type for Small Orifice

    VKPD: With Rubber Boss type for Large Orifice

  • 4.2 Recommended attachments

    • VPR: Mould Perm Tester
    • VD: Core Permeability Tube
    • VBP: Base Permeability Tube
    • Small Orifice
  • 4.3 Alternative equipment

    • Digital Permeability Meter VPD
    • Electropermeability Meter VEP
    • VCAT Multi Tester
    • Digital Permeability Meter VPD I
    • Digital Permeability Meter VPD II
  • 5.1 Consumables

    • Demineralized Water
    • Rubber Boss Assembly (Part # V4500259)
