Rapid Dryer VRD

Rapid Dryer VRD


  • 1.1 General information

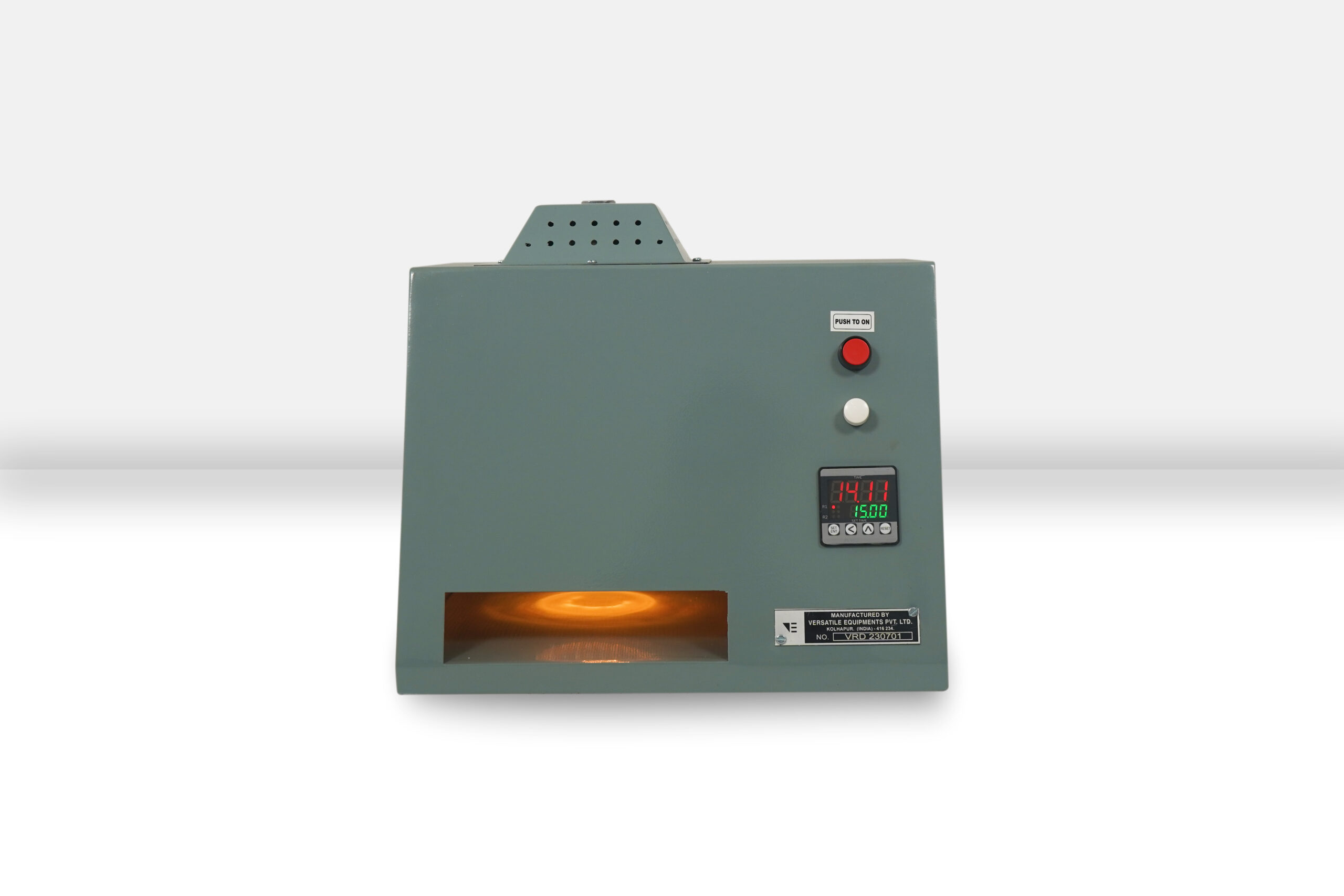

    Rapid dryer is equipped with a heating mechanism and controlled by Dimmer state & Timer. At the lower side in the front a rectangular opening is provided to insert drying pan. Heating is carried out by infrared lamp.

  • 1.2 General Usage

    Mainly used for drying sand sample for determining clay percentage and fineness number.

  • 1.3 Product Data

    Product Name:

    Rapid Dryer

    Product Code:


    Order Reference Code:


    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 06 Amp Plug

    Typical Maximum Current:

    1.2 A at 230V

    Compressed air Supply:

    Not Required


    Not Applicable


    360x250x315mm (WXBXH)

    Packing Dimensions:

    500x400x450mm (WXBXH) Typical

    Net Weight:

    Approximately 6 kg

    Gross Weight:

    Approximately 9 kg


    Factory Default

    Measuring Range:

    100 Grams Sand Sample

    Traceable to:

    Manufacturers Standards

    Least Count:

    Not Applicable

    Specimen Requirements:

    Not Required

    Operating Temperature:

    0-50 degrees Celsius

    Testing Standards:

    BIS: Standard

    AFS: Not Applicable

    Calibration Frequency:

    6500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Rapid Dryer.
    • Assy. drying Pan.
    • Working condition certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    • Auto Clay Washer VCWA or
    • Clay Washer VCW
  • 4.1 Recommended Calibration kits


  • 4.2 Recommended attachments

    • NA
  • 4.3 Alternative equipment

    • NA
  • 5.1 Consumables

    • NA
