Sand Shooter VSS

Sand Shooter VSS


  • 1.1 General information

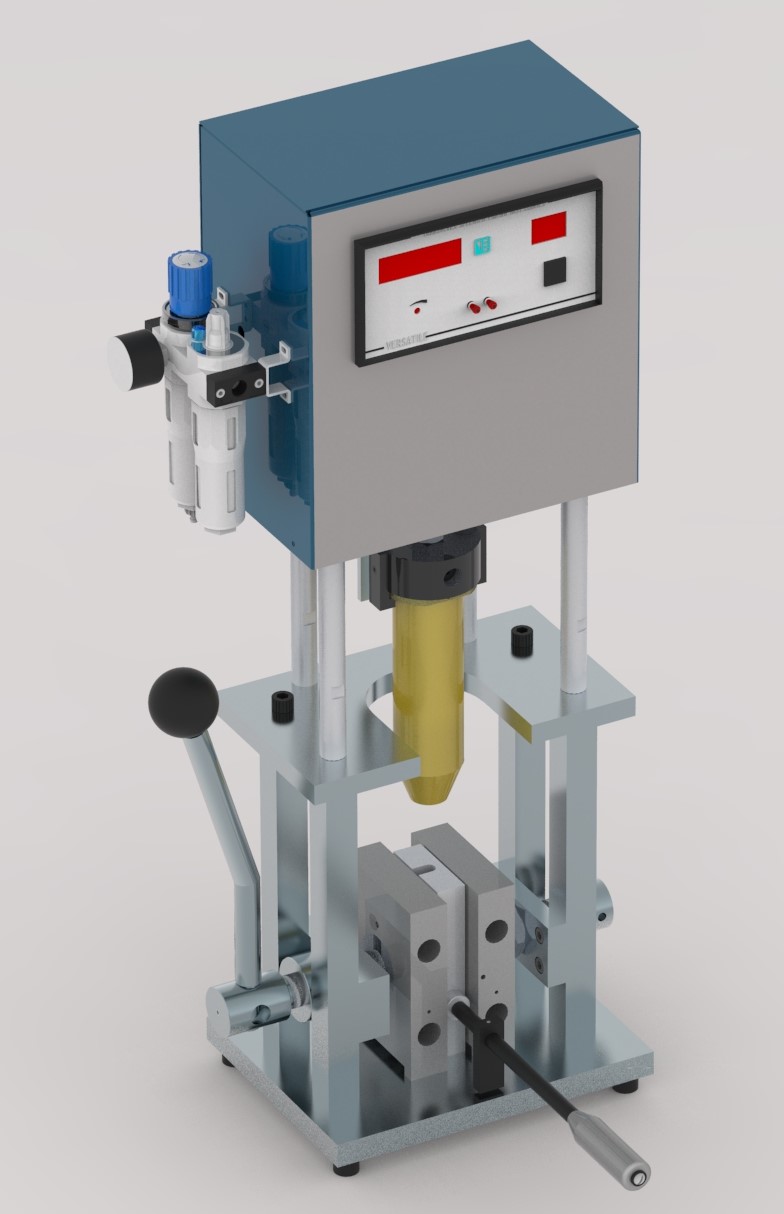

    Sand shooter is consists of pair of controlled heated plates, range up to 300 Degrees Celsius, dumbbell shape split tensile core box with handle. Sand shooting arrangement, suitable for hotbox sand & Resin coated sand.

  • 1.2 General Usage

    Sand shooter has been designed as a complete unit for prepare the specimen from hot box sand & resin coated sand. Prepared specimen use to check the tensile strength of sand.

  • 1.3 Product Data

    Product Name:

    Sand Shooter

    Product Code:


    Order Reference Code:


    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    6.2 A at 230V

    Compressed air Supply:

    5 Kg/cm2 Dry Air


    Not Applicable


    400x440x780mm (WXBXH)

    Packing Dimensions:

    510x560x1000mm (WXBXH) Typical

    Net Weight:

    Approximately 46 kg

    Gross Weight:

    Approximately 56 kg


    Factory Default

    Measuring Range:

    One Specimen

    Traceable to:

    Manufacturers Standards

    Least Count:

    Not Applicable

    Specimen Requirements:

    Not Required

    Operating Temperature:

    0-50 degrees Celsius

    Testing Standards:

    BIS: Standard

    AFS: Optional

    Calibration Frequency:

    11500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Sand shooter.
    • Tensile core box with handle.
    • Accessories shell sand.
    • Assy inner tube.
    • Assy outer tube.
    • Hand gloves set.
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    Sand Splitter : To get representative sample

    Sand sample preparation equipment to make a standard sand sample.

  • 4.1 Recommended Calibration kits

    VKHC: For Temperature

  • 4.2 Recommended attachments


  • 4.3 Alternative equipment

    Universal Sand Shooter Model VUS

  • 5.1 Consumables
