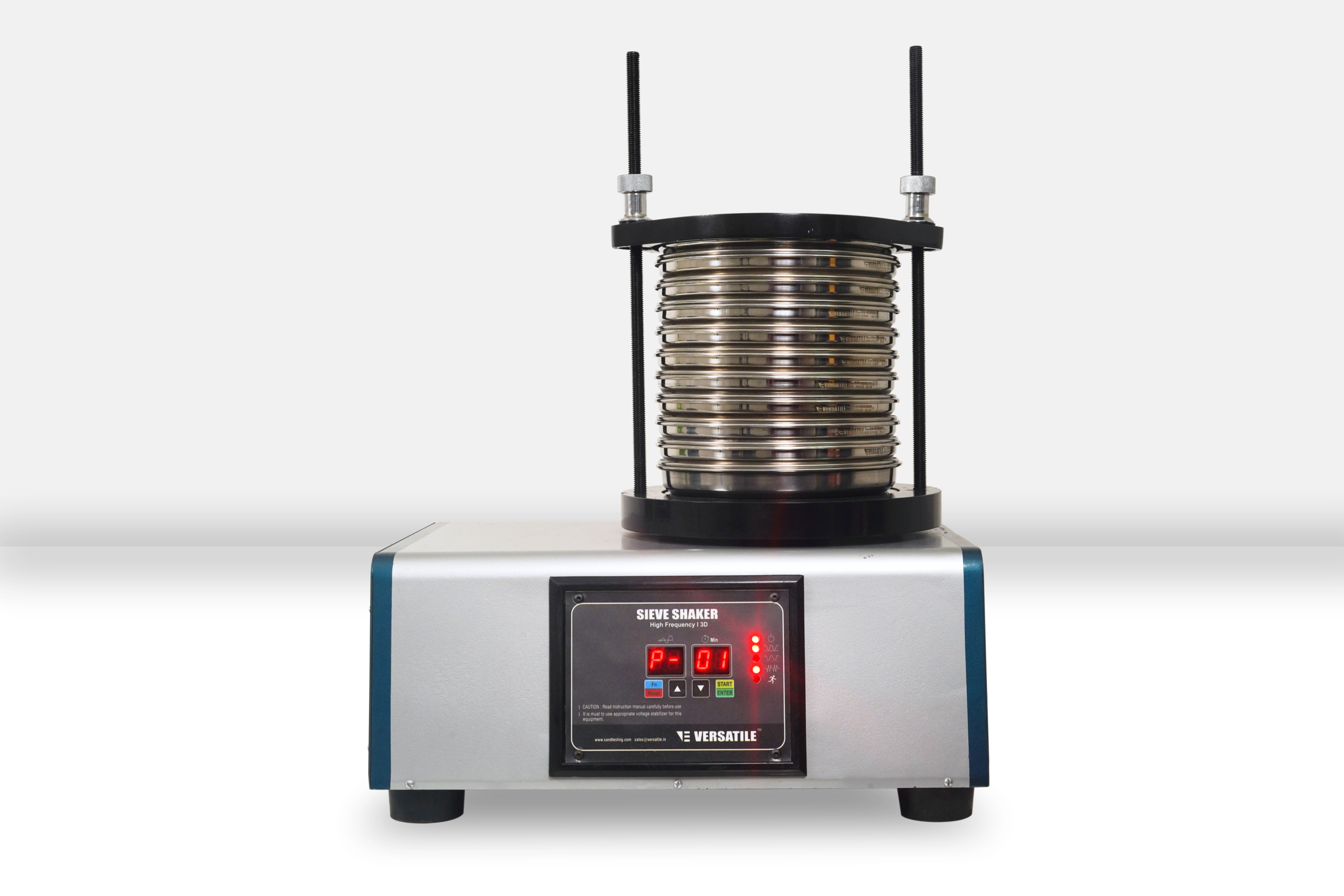

Sieve Shaker VGH II

Sieve Shaker VGH II


  • 1.1 General information

    Sieve shaker is a state of art equipment which vibrates the sieves in a 3D motion at high frequency to achieve consistent sieving results in short sieving time. With a quick clamp mechanism, the equipment is most suitable for variety of materials from foundry sands to pharmaceutical powders.

  • 1.2 General Usage

    Sieve shaker is used for ascertaining the fineness number with help of sieve set. i.e. the grain size fraction of variety of materials from foundry sands (dried and clay free sand) to pharmaceutical powders.

  • 1.3 Product Data

    Product Name:

    Sieve Shaker

    Product Code:

    VGH II

    Order Reference Code:


    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    2.0 A at 230V

    Compressed air Supply:

    Not Required


    Not Applicable


    480x340x550 mm (WXBXH)

    Packing Dimensions:

    610x460x460 mm (WXBXH) Typical

    Net Weight:

    Approximately 38 kg

    Gross Weight:

    Approximately 48 kg


    Factory Default

    Measuring Range:

    Not Applicable

    Traceable to:

    Manufacturers Standards

    Least Count:

    Not Applicable

    Specimen Requirements:

    Not Required

    Operating Temperature:

    0-50 degrees Celsius

    Testing Standards:

    BIS: Standard

    AFS: Optional

    Calibration Frequency:

    15500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Sieve Shaker.
    • Clamping stud – 02 nos.
    • Assy top plate.
    • Knob – 02 nos.
    • Guide rubber.
    • Working condition certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    Sand Splitter : To get representative sample

    Sieve Set

  • 4.1 Recommended Calibration kits


  • 4.2 Recommended attachments

    • NA
  • 4.3 Alternative equipment

    • Sieve Shaker VGH III
  • 5.1 Consumables

    • Guide Rubber # V9001020
