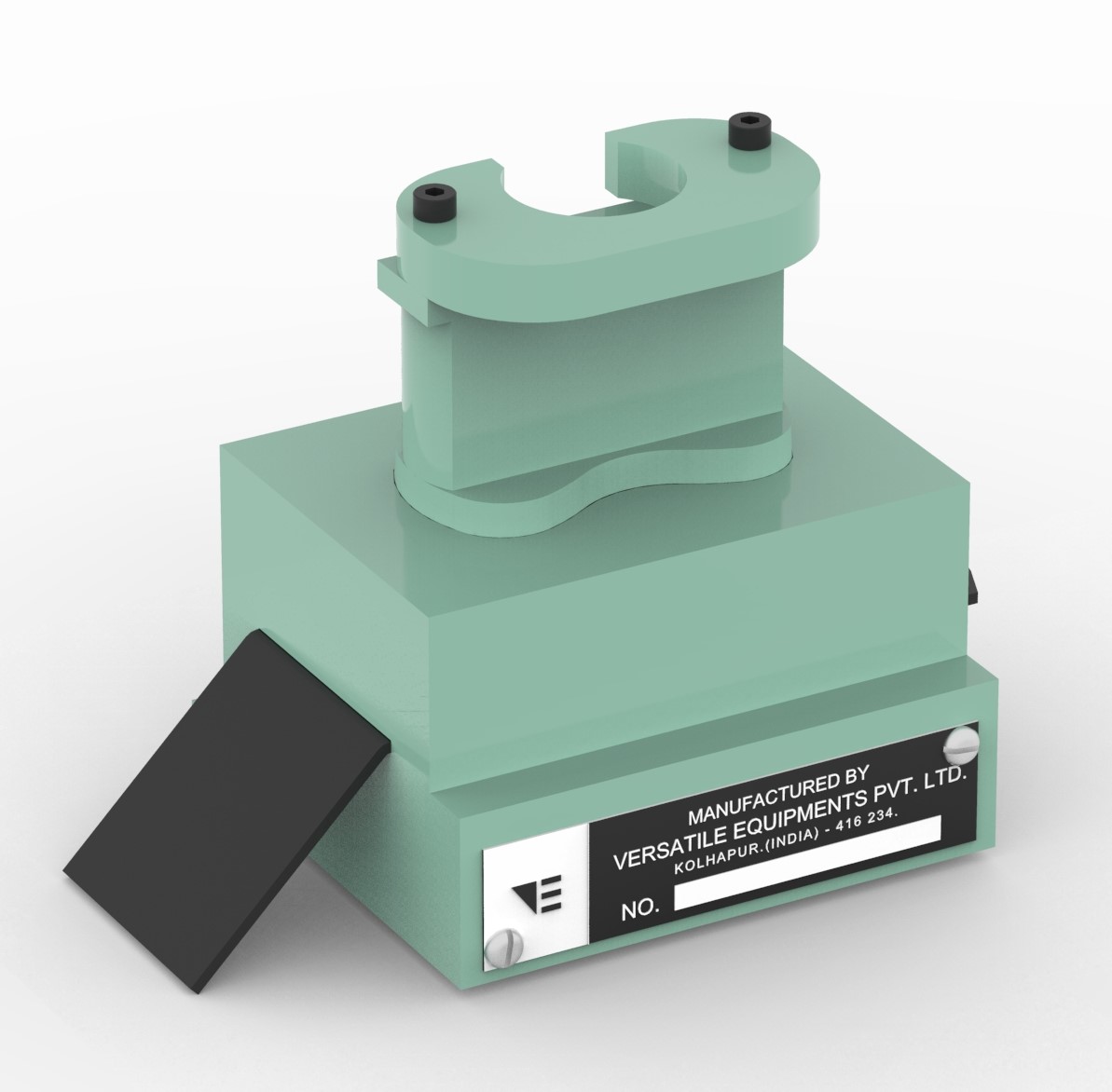

Tensile Core Box VCB

Tensile Core Box VCB


  • 1.1 General information

    The equipment consists of hopper, split core box, base plate, scrapper and plunger with clamping arrangement.

  • 1.2 General Usage

    This equipment used for prepare the tensile type specimen of No-bake and CO2 sand.

  • 1.3 Product Data

    Product Name:

    Tensile Core Box

    Product Code:


    Order Reference Code:


    Electrical Supply Required:

    Not Required

    Electrical Plug:

    Not Applicable

    Typical Maximum Current:

    Not applicable

    Compressed air Supply:

    Not Required



    Not Applicable


    152x95x65mm (WXBXH)

    Packing Dimensions:

    230x230x130mm (WXBXH) Typical

    Net Weight:

    Approximately 1.5 kg

    Gross Weight:

    Approximately 2.5 kg


    Factory Default

    Measuring Range:

    Not Applicable

    Traceable to:

    Manufacturers Standards

    Least Count:

    Not Applicable

    Specimen Requirements:

    Not Required


    Operating Temperature:

    0-50 degrees Celsius

    Testing Standards:

    BIS: Standard

    AFS: Optional

    Calibration Frequency:

    4500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Tensile core box.
    • Scrapper, Plunger with c clamp.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    Sand Rammer VR

    CO2 Gassing Acc. Tensile VOCC

  • 4.1 Recommended Calibration kits


  • 4.2 Recommended attachments


  • 4.3 Alternative equipment

    Gang Tensile Core Box VGT

  • 5.1 Consumables
