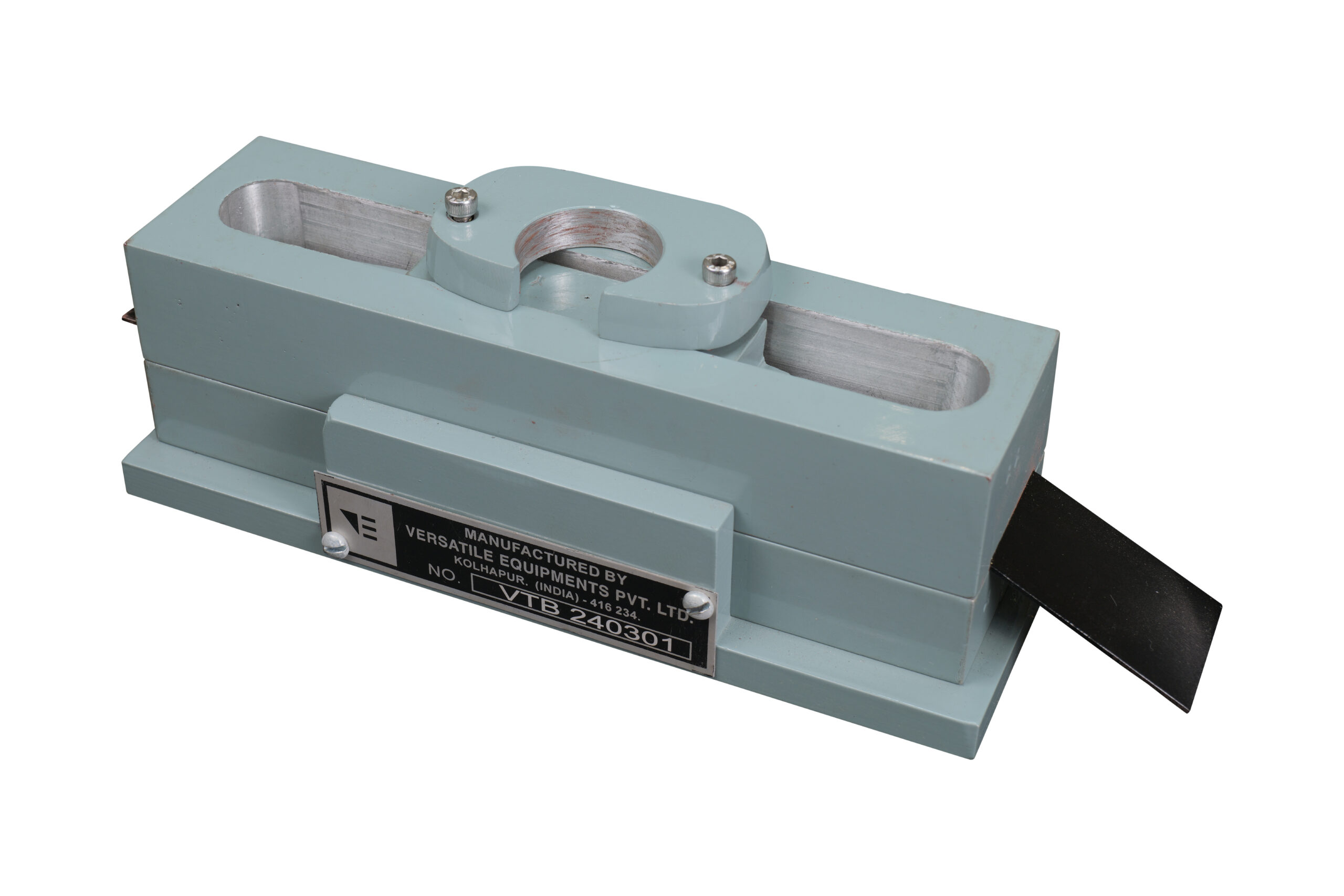

Transverse Core Box VTB

Transverse Core Box VTB


  • 1.1 General information

    The equipment consists of hopper, split core box, base plate, scrapper and plunger with clamping arrangement.

  • 1.2 General Usage

    This equipment used for prepare the transverse type specimen of No-bake and CO2 sand

  • 1.3 Product Data

    Product Name:

    Transverse Core Box

    Product Code:


    Order Reference Code:


    Electrical Supply Required:

    Not Required

    Electrical Plug:

    Not Applicable

    Typical Maximum Current:

    Not applicable

    Compressed air Supply:

    Not Required



    Not Applicable


    235x80x65mm (WXBXH)

    Packing Dimensions:

    230x230x130mm (WXBXH) Typical

    Net Weight:

    Approximately 2.1 kg

    Gross Weight:

    Approximately 5 kg


    Factory Default

    Measuring Range:

    Not Applicable

    Traceable to:

    Manufacturers Standards

    Least Count:

    Not Applicable

    Specimen Requirements:

    Not Required


    Operating Temperature:

    0-50 degrees Celsius

    Testing Standards:

    BIS: Standard

    AFS: Optional

    Calibration Frequency:

    4500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Transverse core box.
    • Scrapper, Plunger with c clamp.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    Sand Rammer VR

    CO2 Gassing Acc. Transverse VOCB

  • 4.1 Recommended Calibration kits


  • 4.2 Recommended attachments


  • 4.3 Alternative equipment

    Gang Transverse Core Box VTBG

  • 5.1 Consumables
