Transverse Strength Machine VTAD I

Transverse Strength Machine VTAD I



  • 1.1 General information

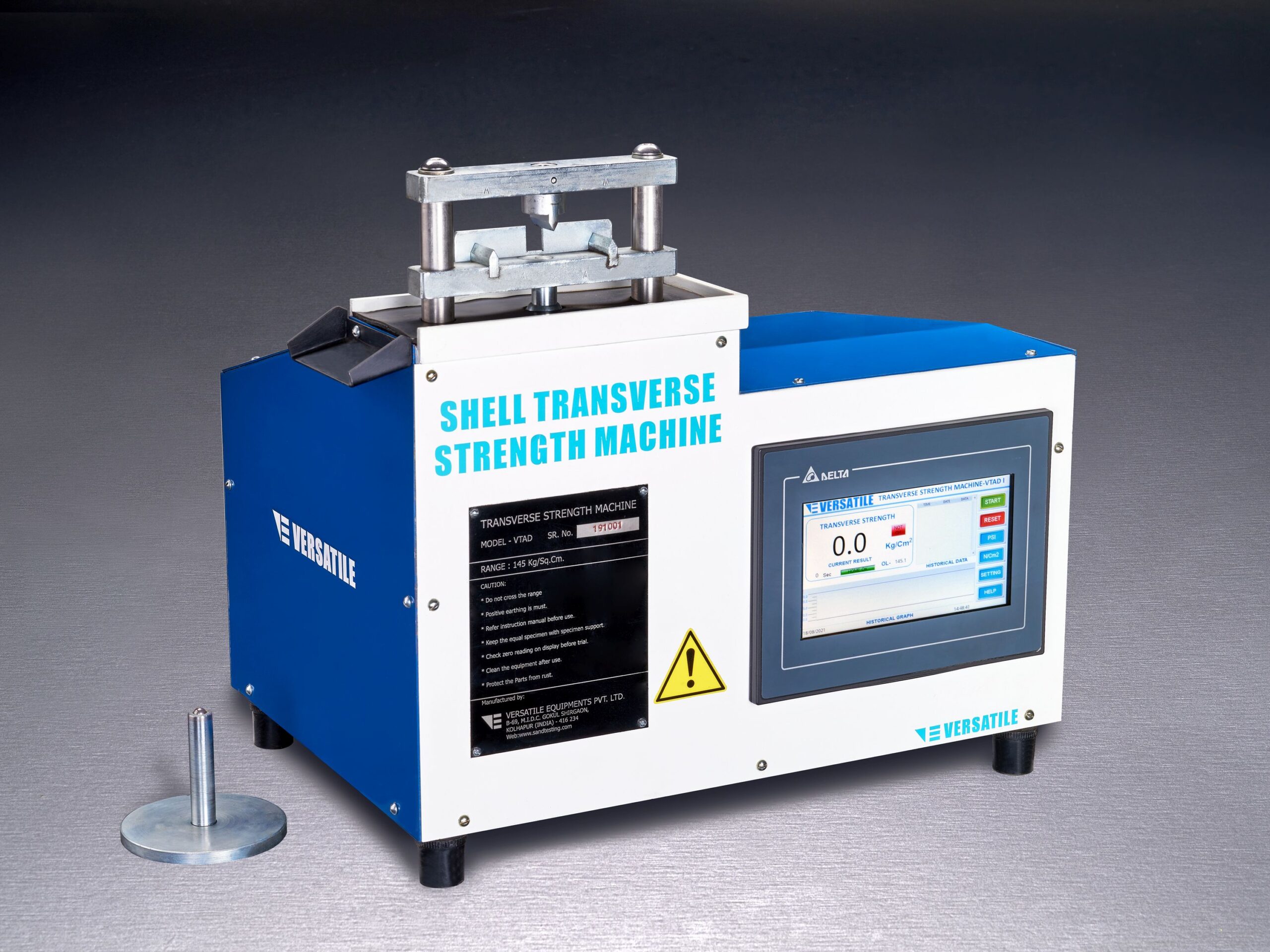

    Transverse Strength Machine is equipped with a loading mechanism and sensing mechanism which are controlled by PLC and observed on screen touch HMI. It can measure transverse strength of Ā¼ā€X1ā€X4ā€ Specimen of resin coated sand.

  • 1.2 General Usage

    Keep the specimen on two point support & press of start button, within few seconds the equipment shows the reading.

  • 1.3 Product Data

    Product Name:

    Transverse Strength Machine

    Product Code:

    VTAD I

    Order Reference Code:

    V0000115

    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    1.5 A at 230V

    Compressed air Supply:

    Not Required

    Communication:

    • Ethernet (RJ45)
    • Cloud Sync using V-Sync

    Dimensions:

    490 X 330 X 435 mm (WXBXH)

    Packing Dimensions:

    610 mmx 490mm x 690 mm (WXBXH) Typical

    Net Weight:

    Approximately 43 kg

    Gross Weight:

    Approximately 53 kg

    Colour:

    Factory Default

    Measuring Range:

    Strength: 145 Kg/cm2

    Traceable to:

    NABL Standards

    Least Count:

    Transverse: 0.1 Kg/cm2

    Specimen Requirements:

    Required

    Operating Temperature:

    0-500C

    Testing Standards:

    AFS

    Calibration Frequency:

    22500 nos. of Testing Cycles or Once in Year
