Universal Strength Machine VUD

Universal Strength Machine VUD

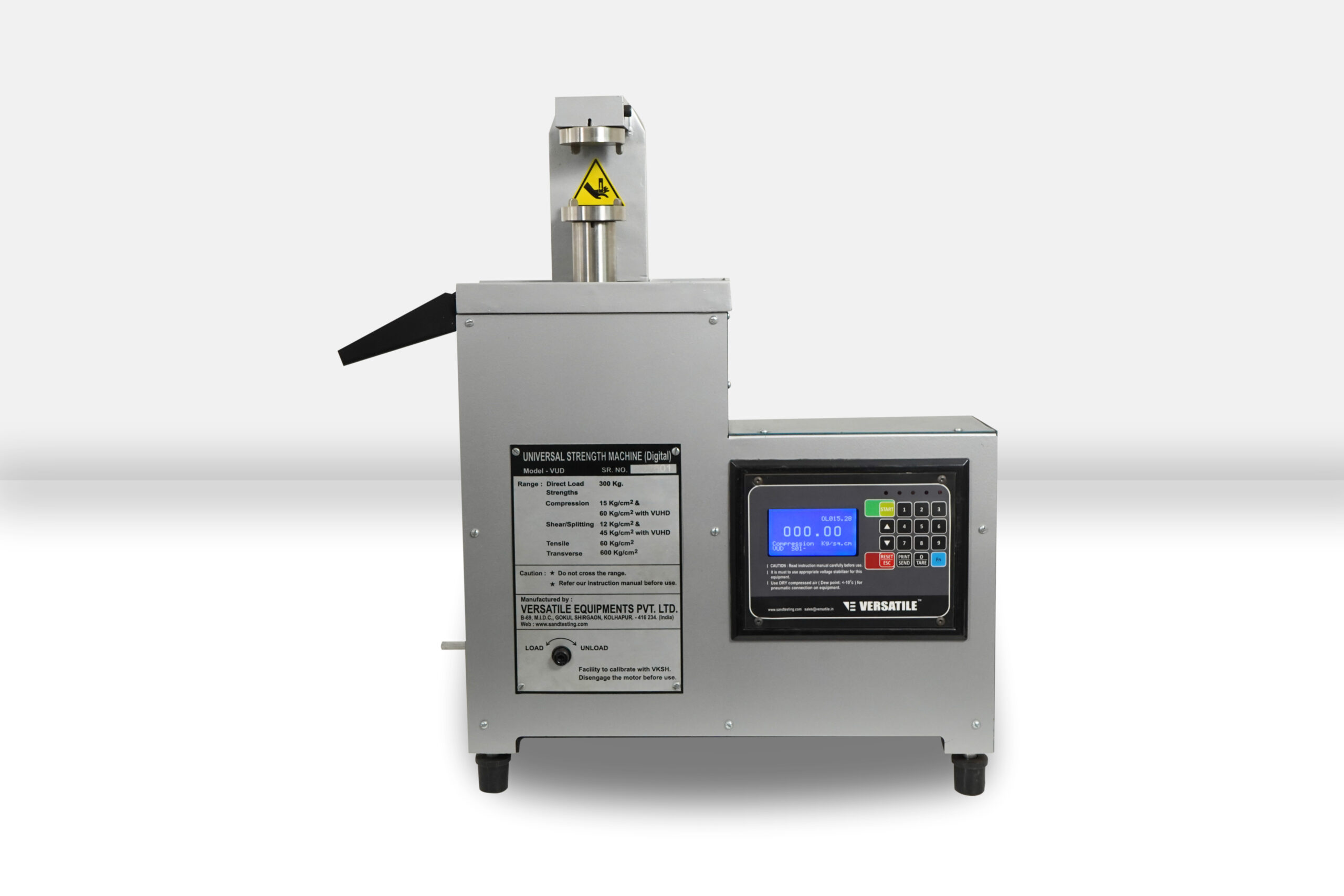

The Universal Strength Machine VUD is a versatile equipment that allows users to test a variety of strengths including compression, tensile, transverse, twin transverse, and high dry strength. This highly precise and accurate machine is IoT enabled, allowing for remote monitoring and data collection. It is suitable for a wide variety of applications. It is an ideal solution for any laboratory requiring strength testing capabilities.

  • 1.1 General information

    Universal Strength machine is equipped with a loading mechanism and sensing mechanism which are controlled by Microcontroller or PLC and observed on LCD display. By default it can measure Compression strength of an AFS (Dia. 2ā€X2ā€) or Metric (Dia. 50mmX50mm) Specimen.

    With Help of attachment it can also measure

    • High Compression Strength (Refer 4.2.1)
    • Shear Strength (Refer 4.2.2)
    • Splitting Strength (Refer 4.2.3).
    • Tensile Strength (Refer 4.2.4).
    • Transverse Strength (Refer 4.2.5).
    • Twin Transverse Strength (Refer 4.2.6).
    • Deformation (Refer 4.2.7).
  • 1.2 General Usage

    Keep the specimen in between compression pads or accessory & press of start button, within few seconds the equipment shows the reading.

  • 1.3 Product Data

    Product Name:

    Universal Strength Machine

    Product Code:

    VUD

    Order Reference Code:

    V0000031

    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    5.5 A at 230V

    Compressed air Supply:

    Not Required

    Communication:

    • RS485 MODBUS RTU
    • RS232 Serial
    • Ethernet (Optional)
    • CloudSync using V-Sync

    Dimensions:

    545 X 320 X 610 mm (WXBXH)

    Packing Dimensions:

    650 mmx 420mm x 760 mm (WXBXH) Typical

    Net Weight:

    Approximately 46 kg

    Gross Weight:

    Approximately 56 kg

    Colour:

    Factory Default

    Measuring Range:

    Direct Load: 300 Kg

    Compression: 15 Kg/cm2

    Shear/Splitting: 12 Kg/cm2

    Tensile : 60 Kg/cm2

    Transverse: 600 Kg/cm2

    Deformation: 10mm

    Traceable to:

    NABL Standards

    Least Count:

    Direct Load: 0.1 Kg

    Compression: 0.05 Kg/cm2

    Shear/Splitting: 0.05 Kg/cm2

    Tensile : 0.05 Kg/cm2

    Transverse: 1 Kg/cm2

    Twin Transverse: 0.05 Kg/cm2

    Deformation: 0.01 mm

    Specimen Requirements:

    Required

    Operating Temperature:

    0-50 Degrees Celsius

    Testing Standards:

    BIS: Standard

    AFS: Optional

    Calibration Frequency:

    22500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Universal Strength Machine.
    • Compression pad set.
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    Sand Splitter : To get representative sample

    Specimen preparation equipmentā€™s to make a standard AFS or Metric specimen.

  • 4.1 Recommended Calibration kits

    There are two types of calibration kits to choose from:

    VKSL: For Low Strength

    VKSH: For High Strength

  • 4.2 Recommended attachments

    • VUHD: High Dry Strength Attachment
    • VHS: Shear Strength Attachment
    • VSA: Splitting Strength Attachment
    • VAS: Tensile Strength Attachment
    • VTS: Transverse Strength Attachment
    • VTT: Twin Transverse Shear Attachment
    • VDSD: Deformation Attachment
  • 4.3 Alternative equipment

    • Universal Strength Machine Hydraulic VUN (For Educational Purposes)
    • Universal Strength Machine VUM
  • 5.1 Consumables

    NA
