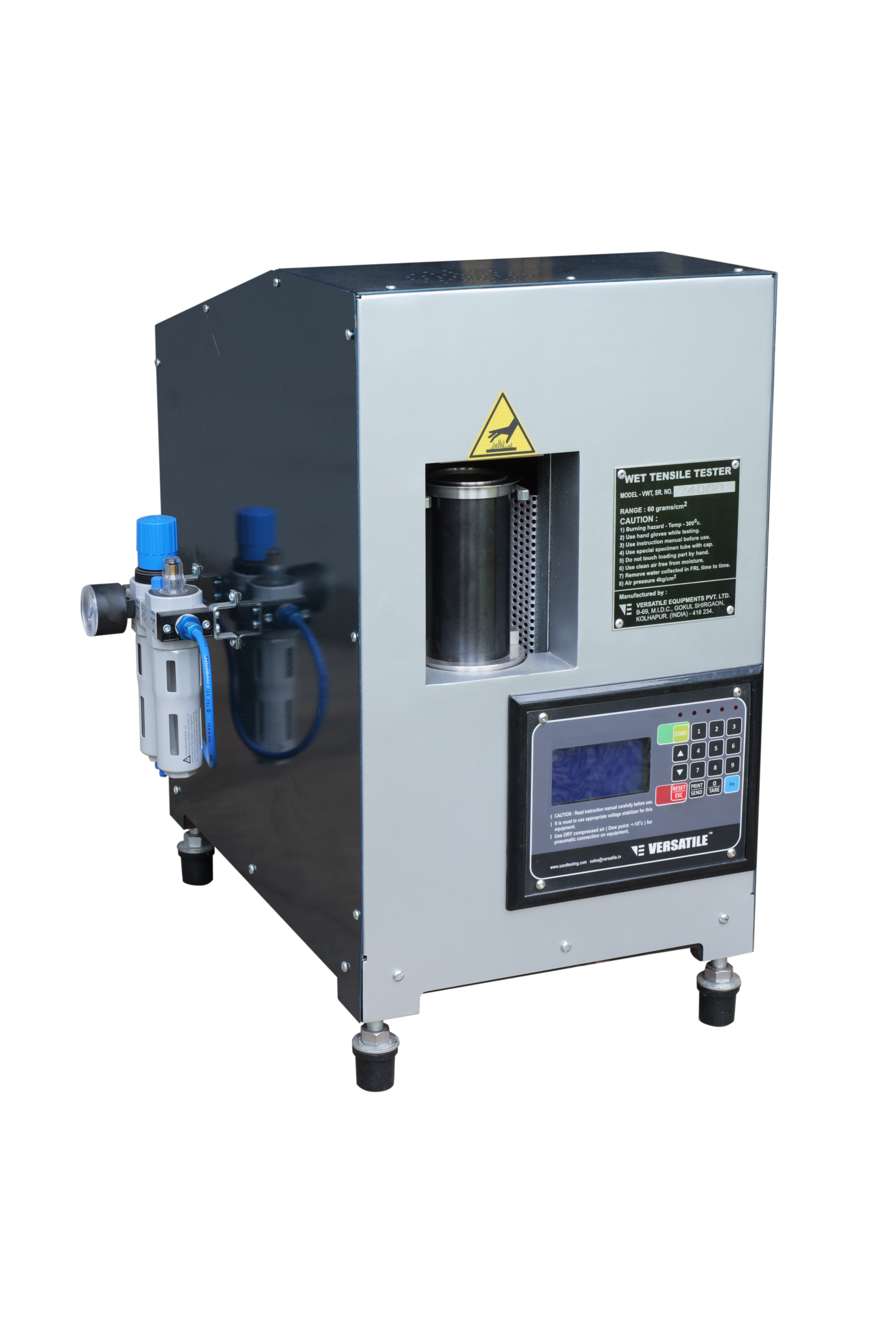

Wet Tensile Tester VWT

Wet Tensile Tester VWT

The Wet Tensile Tester VWT is the perfect choice for testing the wet tensile strength of green sand. It offers precise and accurate results, and is designed for easy operation and data collection. With its intuitive user interface and reliable performance, this tester is an ideal choice for any laboratory testing needs. It is also highly durable and able to withstand the demanding conditions of the testing environment. With its superior technology, the Wet Tensile Tester VWT is the perfect choice for green sand testing.

  • 1.1 General information

    Wet Tensile Tester is equipped with a loading mechanism, heating mechanism and sensing mechanism which are controlled by Microcontroller or PLC and observed on LCD display.

  • 1.2 General Usage

    Specimen held in a tube with special tube cap is placed on the specimen tube seat. On press of start button, after curing time the equipment shows wet tensile reading.

  • 1.3 Product Data

    Product Name:

    Wet Tensile Tester

    Product Code:

    VWT

    Order Reference Code:

    V0000037

    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    6.9 A at 230V

    Compressed air Supply:

    5 Kg/cm2 Dry Air

    Communication:

    • RS485 MODBUS RTU
    • RS232 Serial
    • Ethernet (Optional)
    • CloudSync using V-Sync

    Dimensions:

    350 X 460 X 535 mm (WXBXH)

    Packing Dimensions:

    450 mmx 560mm x 685 mm (WXBXH) Typical

    Net Weight:

    Approximately 53 kg

    Gross Weight:

    Approximately 63 kg

    Colour:

    Factory Default

    Measuring Range:

    60 Gm/cm2

    Traceable to:

    NABL Standards

    Least Count:

    0.05 Gm/cm2

    Specimen Requirements:

    Required

    Operating Temperature:

    0-50 degrees Celsius

    Testing Standards:

    BIS: Standard

    AFS: Optional

    Calibration Frequency:

    22500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Wet Tensile Tester.
    • Special tube, Special tube cap & Special pedestal cup
    • Calibration dead weights set
    • Hand gloves set asbestos
    • Calibration certificate.
    • Instruction manual.
  • 3.1 Recommended pre-requisite equipment

    Sand Splitter : To get representative sample

    Specimen preparation equipmentā€™s to make a standard AFS or Metric specimen.

  • 4.1 Recommended Calibration kits

    VKHC: For Temperature

    Calibration dead weights

  • 4.2 Recommended attachments

    NA

  • 4.3 Alternative equipment

    NA

  • 5.1 Consumables

    NA
